You are here: Home > Products > Resistors > Film Fixed Resistors
Carbon Film Fixed Resistor KLS6-CF All Products in Film Fixed Resistors

Carbon Film Fixed Resistor


  Product Images
Carbon Film Fixed Resistor Carbon Film Fixed Resistor


  Product Information

Carbon Film Fixed Resistor

1.Features
• Temperature Range -55 ° C ~ +155 ° C
• ± 5% tolerance
• High quality performance at economical prices
• Compatible with automatic insertion equipment
• Flame retardant type available
• Weldable type with copper plated lead wire available
• Values below 1Ω or above 10MΩ are available by special request,
please ask for details

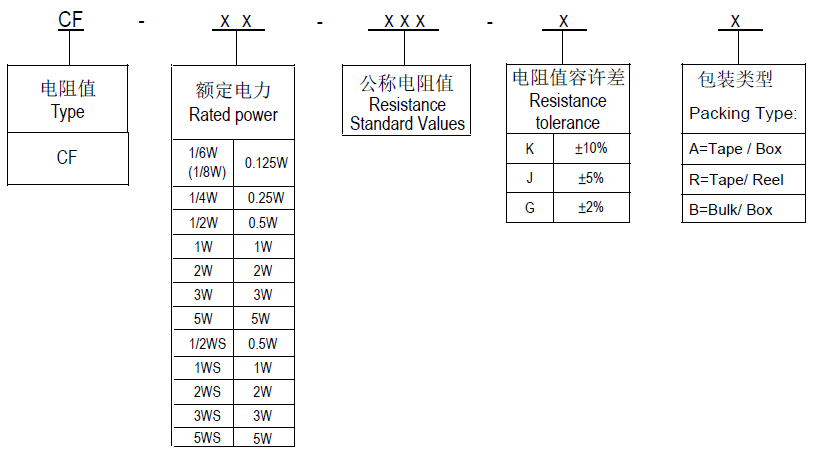

Picture Part No. PDF Description Order Qty. Time Order
KLS6-CF-1/2W-10KR-JACarbon Film Fixed Resistor,Standard size,Max working voltage 350V,0.5W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Tape in box.
KLS6-CF-1/2W-10KR-JBCarbon Film Fixed Resistor,Standard size,Max working voltage 350V,0.5W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Bulk in box.
KLS6-CF-1/4W-10KR-JACarbon Film Fixed Resistor,Standard size,Max working voltage 250V,0.25W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Tape in box.
KLS6-CF-1/4W-10KR-JBCarbon Film Fixed Resistor,Standard size,Max working voltage 250V,0.25W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Bulk in box.
KLS6-CF-1/8W-10KR-JACarbon Film Fixed Resistor,Standard size,Max working voltage 200V,0.125W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Tape in box.
KLS6-CF-1/8W-10KR-JBCarbon Film Fixed Resistor,Standard size,Max working voltage 200V,0.125W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Bulk in box.
KLS6-CF-1W-10KR-JACarbon Film Fixed Resistor,Standard size,Max working voltage 500V,1W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Tape in box.
KLS6-CF-1W-10KR-JBCarbon Film Fixed Resistor,Standard size,Max working voltage 500V,1W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Bulk in box.
KLS6-CF-2W-10KR-JACarbon Film Fixed Resistor,Standard size,Max working voltage 500V,2W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Tape in box.
KLS6-CF-2W-10KR-JBCarbon Film Fixed Resistor,Standard size,Max working voltage 500V,2W,Tolerance:±5% (Optional:±1% or ±2%),Resistance 10KΩ(1Ω~10MΩ),Bulk in box.
