Slide on style heatsink for Dip 8 14 16 18 20 24 28 pins KLS21-A1001 All Products in Extruded heat sink with Slide on

Slide on style heatsink for Dip 8 14 16 18 20 24 28 pins


  Product Images
Slide on style heatsink for Dip 8 14 16 18 20 24 28 pins Slide on style heatsink for Dip 8 14 16 18 20 24 28 pins


  Product Information
Slide on heat sink with staggered fins attaches to 8 pin DIP packages quickly and easily.The heat sink features double spring action and locking catch to firmly attach the device creating a thermal conduction path on both the top and bottom surfaces. Available in two finishes.

Order Information:
KLS21-A1001A-BA
Type:A,B,C,D,E,F,G
Material Finish: BA-Black Anodized Or MT-Matte Tinned

Type: Top Mount
Package Cooled: Dip 8 14 16 18 20 24 28 Pins
Attachment Method: Slide on
Shape: Rectangular, Fins
Material: Aluminum
Material Finish: Black Anodized Or Matte Tinned

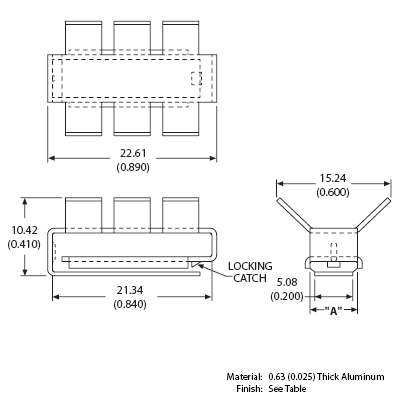

A100A SIZE for 8 pin dip:

----------------------------------------------------------------
A1001B SIZE for 14 and 16 pin dip:

----------------------------------------------------------
A1001C SIZE for 28 pin dip:

---------------------------------------------------------------
A1001D SIZE for 18 pin dip:

--------------------------------------------------------------
A1001E SIZE for 20 pin dip:

-----------------------------------------------------------
A1001F SIZE for 24 pin dip:

-----------------------------------------------------------
A1001G SIZE for 24 pin dip:






Picture Part No. PDF Description Order Qty. Time Order
