Specification

MATERIAL

insulator: LCP
Housing: PA4T
Body shell: Zinc alloy

ELECTRICAL

Impedance: 50Ω
Frequency: DC to 9GHz
Return Loss:
≥ 12dB, DC to 9GH z
≥ 20dB, DC to 6GHz
Insertion Loss: ≤0.1x√f(GHz) dB
Insulation resistance: ≥100 MΩ
Center Contact Resistance: ≤24mΩ
Outer Contact Resistance: ≤6mΩ
Test Votage: 800Vrms
Working Votage: 60V DC
Power Current: ≤1A DC
RF-leakage(Optional): ≤-60dB up to 10GHz

MECHANICAL

Mating Cycles: ≥25
Retention Force Latch: ≥110N
Temperature Range: -40°C TO +105°C

Order information:
KLS1-MINI-FAKRA01-A-9005-1

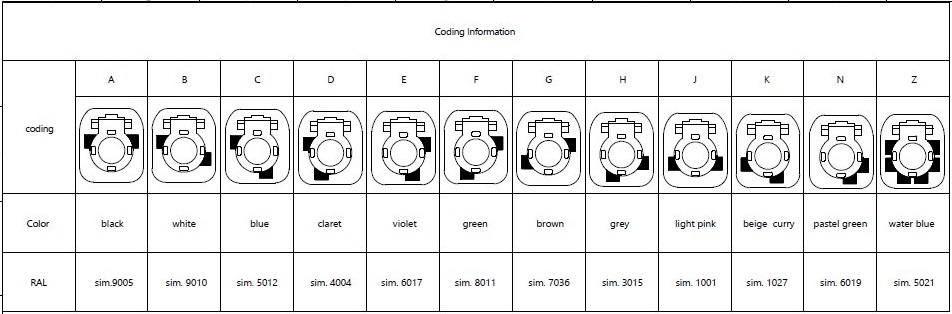

Card slot direction: A=Up

RAL=9005,9001,5005,4004,6002,8011,7031,4003,1001,1027,3002,2003,6019,5021

Size-1,2,3,4...
