Specification

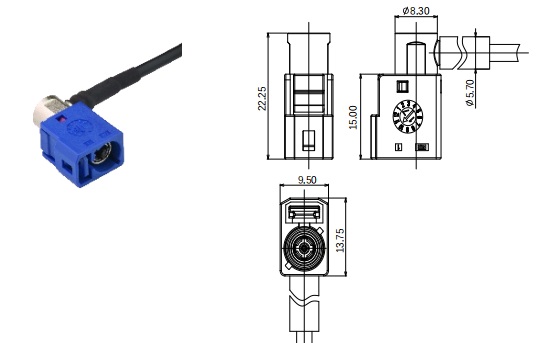

• Connector: 1 x FAKRA jack 90°
• Frequency Range: DC to 4 GHz
• Pin: beryllium copper gold plated
• Snap ring: beryllium copper
• Insulator: PTFE
• Housing: brass nickel plated
• Plastic shell: PA66 GF30
• Useable cable: RG-174, RG-316,RG-58

System requirements
• Coaxial cable suitable for crimping
