Order Information:
KLS20-JL-700-W2-L120MM
W2-With protective cover N-without protective cover
L120MM-Cable 40mm~200mm or N-without cable
Product information

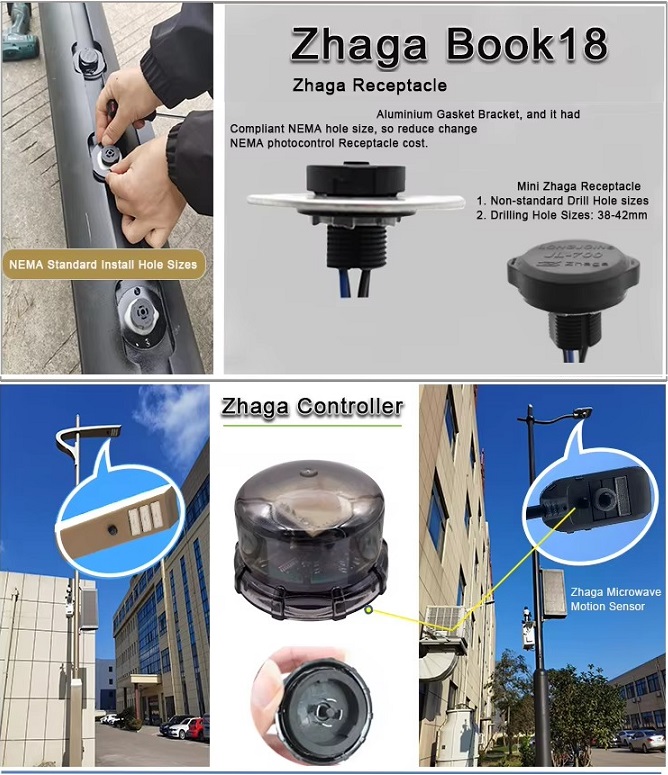

Standard：Zhaga Book 18
Rating：1.5A, 30V
Dielectric Withstand：10KV to mounting surface
4PIN Contact：Pin 1: 24VDC (Brown Wire)
Pin 2: DALI - (Grey Wire)
Pin 3: DALI+ (Violet Wire)
Pin4: General I/O (Blue Wire)
Ingress Protection：IP66
Housing Materials：High Temperature Resistance Polybutylene Terephthalate
Gasket：Silicon Materials
Mounting Ring：Aluminm Materials
Wire：UL1015 18AWG*16cm
|
