Male Inserts,Contacts 4/2+PE,Spring connection(quick),40A/16A 690V/500V KLS1-HSB-004-2MQ All Products in HSB/HSBS Inserts Series

Male Inserts,Contacts 4/2+PE,Spring connection(quick),40A/16A 690V/500V

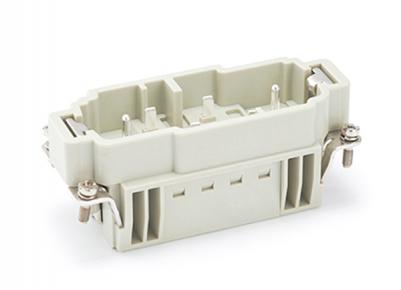

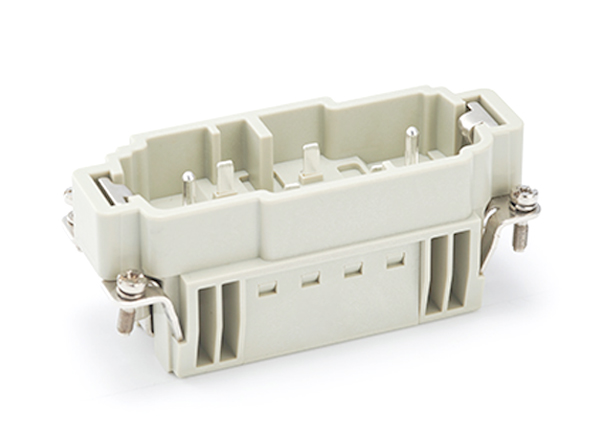

  Product Images
Male Inserts,Contacts 4/2+PE,Spring connection(quick),40A/16A 690V/500V


  Product Information
Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-2.5mm² (20-14 AWG) / 0.5-6mm² (20-10 AWG)
Terminal: Spring terminal (quick connection)

Electrical Characteristics:
Number of contacts: 4/2+PE
Rated Current: 40A/16A
Rated Voltage:690V/500V
Rated Impulse Voltage: 6KV/6KV
Pollution Degree: 3
Insulation Resistance: 1010Ω Min
Contact Resistance: 3mΩ Max
Limiting Temperatures: -40℃ ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
