H32B Classic compact Housing,Surface mounting,Side entry,Double Locking Latch KLS1-H32B-SF-2L |
 All Products in 32B Housing |
|
 |

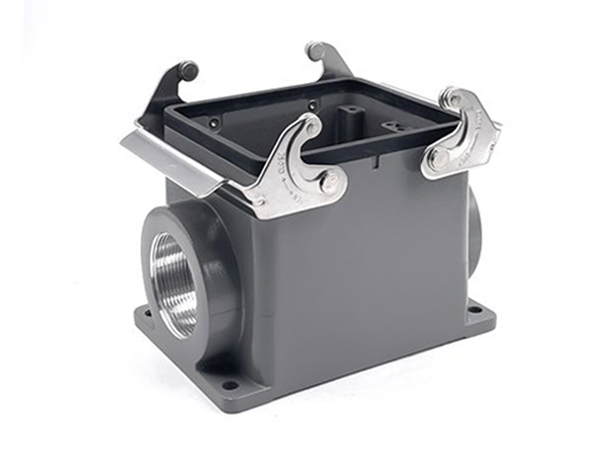

H32B Classic compact Housing,Surface mounting,Side entry,Double Locking Latch
Order Information:
L-KLS1-H32B-SF-2L(xx)-xx
L: RoHS
H32B: H32B High-voltage series
Cable entry: SF=Surface mounting, Side entry
Locking type: 2L=Double Locking Latch
Material:
Housing: Aluminium Die-Cast, UL94V-0
Surface: Powder-Coated
Colour: RAL7037 (Grey)
Temperatures range: -40℃ ~ +125℃
Degree of protection: IP65 (Acc.to IEC 60529 for coupled Connector)
Locking Element:
Locking Type: Double Locking Latch
Material: Metal galvanized / Nickel plating
Hoods / Housings Sealing: NBR
Cable entry: Side entry
No.of Cable Entries: 1 |
