H6B Classic compact Housing,Surface mounting,High construction,Single Locking Latch KLS1-H6B-SFH-1L |
 All Products in 6B Housing |
|
 |

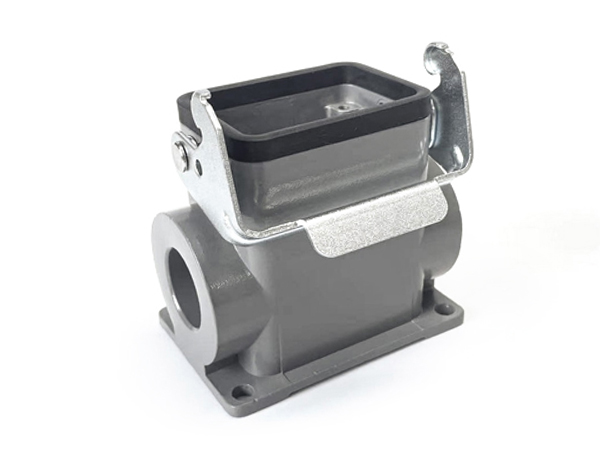

H6B Classic compact Housing,Surface mounting,High construction,Single Locking Latch
Order Information:
L-KLS1-H6B-SFH-1L(xx)-xx
L: RoHS
H6B: H6B series
Cable entry: SF=Surface mounting, High construction
Locking type: 1L=1(single) Locking Latch
xx: C: Plastic cover
MC: Metal cover
Thread size: xx: M32 / 2M32 / PG21 / 2PG21 / PG29 / 2PG29
Material:
Body: Aluminium die-cast, powder-coated, RAL 7037(grey)
Cover: PC / Aluminiun
Hoods/Housings sealing: NBR
Temperature range: -40℃ ~ +125℃
Degree of protection: IP65 (acc.to IEC 60529 for coupled connector)
Cable entry: Side entry
No.of cable entries: 1 / 2
Thread size: M32 / 2M32 / PG21 / 2PG21 / PG29 / 2PG29
Loching element:
Locking type: single locking latch
Material: Metal+Plastic |
