H32A Classic compact Housing,Side entry,With 4 Post KLS1-H32A-R-4B |
 All Products in 32A Housing |
|
 |

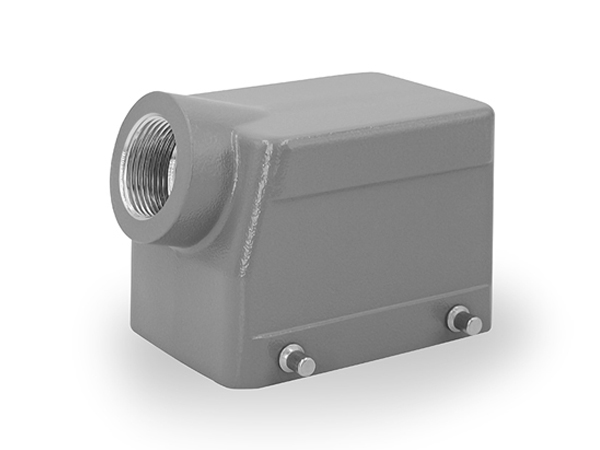

H32A Classic compact Housing,Side entry,With 4 Post
Order Information:
L-KLS1-H32A-R-4B-xx
L: RoHS
H32A: H32A series
Cable entry: R=Side entry
Post: With 4 Post
Thread sizes: xx: M25 / PG21
Material:
Body: Aluminium die-cast, powder-coated, RAL 7037(grey)
Hoods / Housings sealing: NBR
Temperature range: -40℃ ~ +125℃
Degree of profection: IP65 (acc.to IEC 60529 for coupled connector)
Cable entry: Side entry
No.of cable entries: 1
Thread size: M25 / PG21
|
