5V DC Centrifugal Fans,HDB KLS22-LX-3003-MHD05 All Products in DC Centrifugal Fans

5V DC Centrifugal Fans,HDB

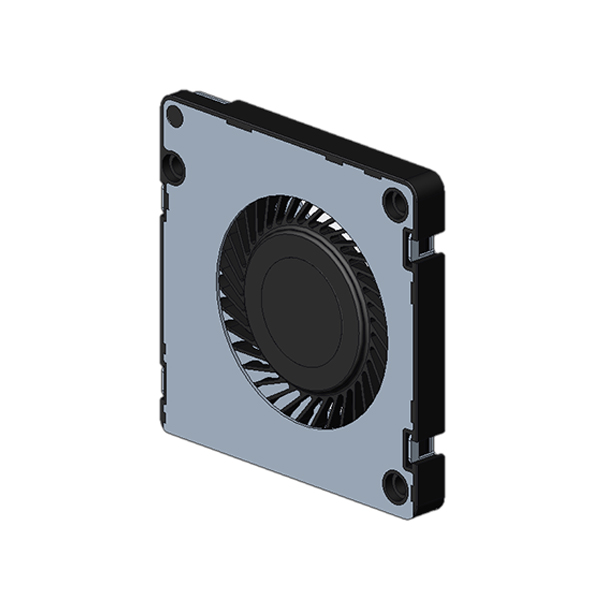

  Product Images
5V DC Centrifugal Fans,HDB


  Product Information
Order Information
L-KLS22-LX-3003-MHD05X

Model
Bearing TYPE Rated Voltage Operating Voltage Rated Current Rated Inputpower Speed Maximum
Air Flow
Maximum
Air Pressure
Noise Distance
V DC V DC A MP WATT RPM M³/Min CFM mm H2O IN H2O dB(A) m
L-KLS22-LX-3003-MHD05A HDB 5 3.5~5.5 0.1 0.50 9500 0.018 0.66 8.25 0.322 32.1 0.3
L-KLS22-LX-3003-MHD05B HDB 5 3.5~5.5 0.15 0.75 12500 0.025 0.91 14.30 0.558 41.1 0.3
L-KLS22-LX-3003-MHD05C HDB 5 3.5~5.5 0.25 1.25 14500 0.030 1.06 18.99 0.741 45.1 0.3

Material:
Housing: Plastic, UL94V-0

Electric:
Insulation Impedance: 10MΩ /DC 250V Min
Voltage Withstand Test: AC 500V 1s
