Modular Jack RJ9/RJ10/RJ22 KLS12-301-4P All Products in Modular jacks

Modular Jack RJ9/RJ10/RJ22


  Product Images
Modular Jack RJ9/RJ10/RJ22


  Product Information

Modular Jack RJ9/RJ10/RJ22
MATERIAL
1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
2.Housing Color: Black, Gray, Ivory, White or Others
3.Contact Material: Phosphor Bronze Φ0.46mm
4.Plating: Gold plating over nickel. Gold plating thickness
1.5u"/ 3u"/ 6u"/ 15u"/ 30u"/ 50u"

ELECTRICAL
1.Current Rating:1.5Amp
2.Voltage Rating:125VAC
3.Contact Resistance: 30MΩ Max.
4.Insulation Resistance: 500MΩ Min @500VDC
5.Withstanding Voltage:1000VAC RMS 50Hz 1 minute

MECHANICAL
1.Durability : 750 cycles Min
2.PCB Retention pre-solder : 1 LB MIN

ENVIRONMENTAL
1.Storage :- 40ºC~+80ºC
2.Operation:-40ºC~+70ºC

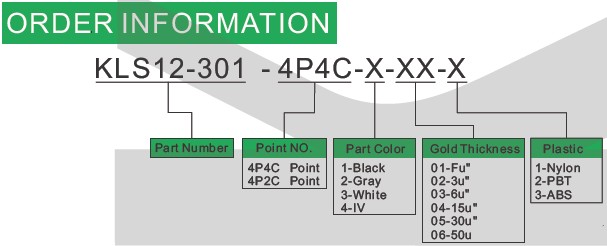

Picture Part No. PDF Description Order Qty. Time Order
KLS12-301-4P2C-G-01Modular Jack,Right PCB Mount,Unshield,4P2C (RJ9),Gray,Gold 1u.
KLS12-301-4P4C-G-01Modular Jack,Right PCB Mount,Unshield,4P4C (RJ9, RJ10, RJ22),Gray,Gold 1u.
