M8 connectors is a connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, generally connecting with automation sensors in factory packaging and delivery system, outdoor LED module, security grating screen, and new energy signal control applications.
● 3 pin, 4 pin, 5 pin, 6 pin, 8 pins available
● Custom cable specification and lengths, molded with PVC or PUR cable
● The receptacle counter part with PCB contacts or Solder type panel mount connectors
● Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cable available
● Voltage rating: 60V, 30V
● Current rating: 3A, 1.5A
● IP67 protection degree
Order information KLS15-M8A-L203
M8: Screw type
A: A Coding
L2: Soldering ,Panel mount, Front lock,Male
03: Number of Contacts 3,4,5,6,8Pins
Electrical & Mechanical data
Contacts Poles: 3,4,5,6,8 PinS
Connector Gender: Male connector
Cable Jacket: PVC, TPE 90℃, Custom cable material
Current Rating: 3A (3,4,5pins), 1.5A (6,8pins)
Wire Gauge (size): 24AWG/ 0.25mm²
Voltage Rating: 60V(3,4pins), 30V (5,6,8pins)
Keyway Coding: A-Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 180° Straight
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Inserts: TPU + GF
Sealing: Epoxy resin
Housing/ Outer Shell: Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ

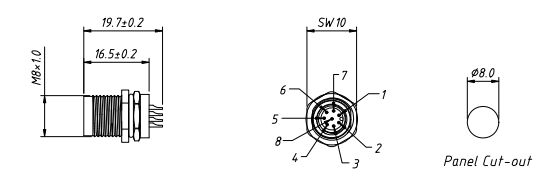

Panel Cut Size: M8x1.0
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67, IP 69K
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes, IP69K against high pressure/ steam jet
Plug Mating Life: 500 times
Warranty: 1-years quality guarantee period
Compliance: RoHS compliant, REACH compliant
Reference Standard: IEC 61076-2-104
Products Certification: UL Certified, CUL Certified, CE/ EMC, IP67
