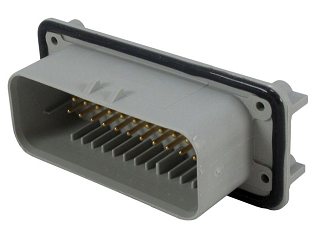

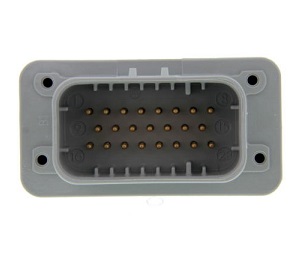

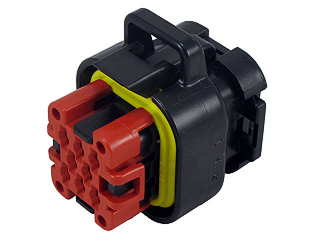

Automotive waterproof ECU connector 8 14 25 35 positios automotive connectors provide rugged reliability, easy use and superior environmental sealing. They are available in cable plugs and pc board-mounting headers that are designed to stand up to high-temperature underhood applications. The pre-assembled receptacle connector features built-in contact sealing to eliminate individual wire-sealing grommets, while an integral interfacial seal protects mated connectors.
Order Information
KLS13-CA004-XX-S-B XX-8 14 25 35 positions
S-Straight Pin R-Right Angle Pin H-Housing T-Terminal
B-Black N-Natural G-Gray L-Blue
Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)
16-20 AWG (1.25-0.50 mm2)
8, 14, 23, and 35 cavity arrangements
PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Integrated wedgelock confirms contact alignment and retention
