2+PE AC PowerCON connector KLS1-SLP-0703 & KLS1-SLS-0703 All Products in SpeakON cable connectors

2+PE AC PowerCON connector


  Product Images

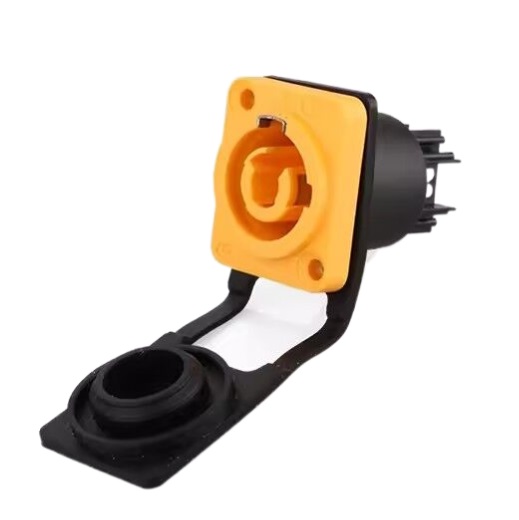

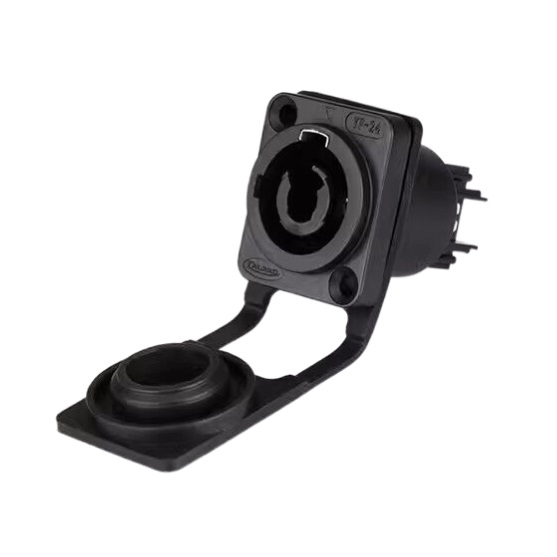

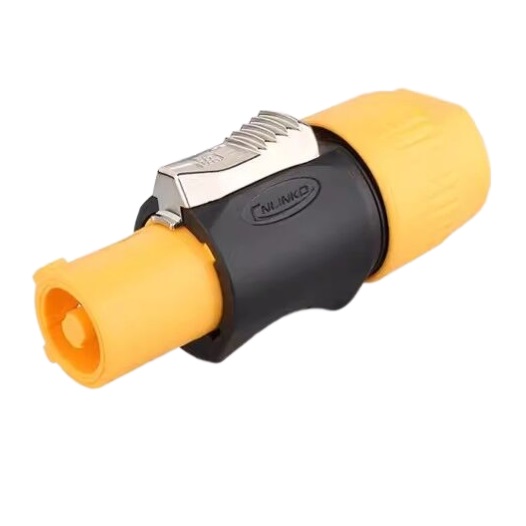

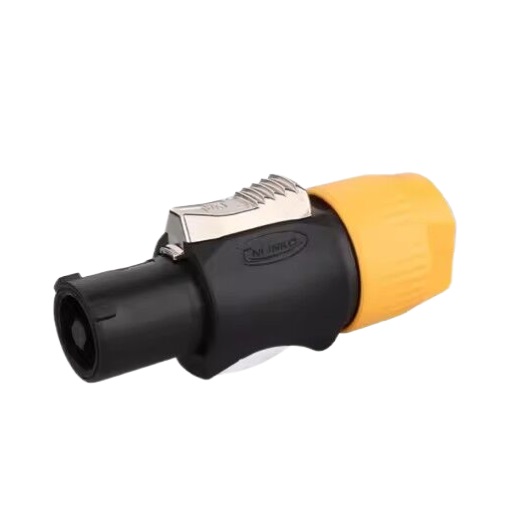

2+PE AC PowerCON connector 2+PE AC PowerCON connector 2+PE AC PowerCON connector 2+PE AC PowerCON connector

2+PE AC PowerCON connector 2+PE AC PowerCON connector 2+PE AC PowerCON connector


  Product Information
2+PE AC PowerCON connector

ELECTRICAL
1.Voltage Rating: 250VAC
2.Current Rating: 20A Max.
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 1000MΩ Min.
5.Withstanding Resistance :1000VAC Min.
MECHANICAL
1.Durability: 1000 cycles Min.

TYPE  SIZE   Type  ORDERING
Plug KLS1-SLP-0703-02-YB
Socket  KLS1-SLS-0703-02-YB
Plug  KLS1-SLP-0703-02-BY
Socket  KLS1-SLS-0703-02-BB
