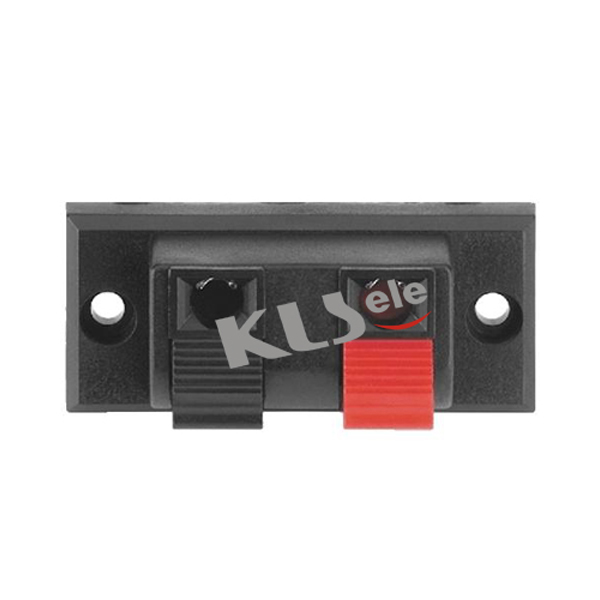

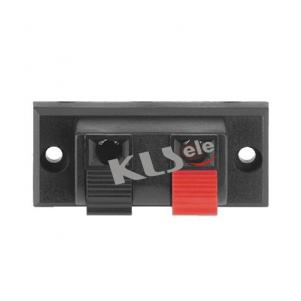

Spring Terminals Speaker
Order Information
L-KLS1-SP-2P-03A-B/R
2P: No.of 2 Pin
Handle Color: Red/Black Red/Red
Black/Red Black/Black
Material:
Base: ABS
Pin: 0.4 Brass
Spring: Carbon Steel
Handle: ABS
Electric:
Rated Load: DC50V 0.2A
Contact Resistancel: 0.03Ω Max
Insulation Resistance: 100MΩ Min DC500V
Withstand Voltage: AC500V(50HZ)/min
Insertion and Extraction Forcel: 1Kgf
Life: 5000Times
Temperature: -40℃ ~ +100℃ |
