Electrical Specifications:
| Frequency range(MHz) |
698~960MHz |
1710~2690MHz |
| Peak Gain (dBi) |
-1.6~2.4dBi |
10.3~3.5dBi |
| Average Gain (dB) |
4.3~-1.8dB |
4.1~-1.7dB |
| VSWR |
<4.0 |
<2.5 |
| Return Loss |
<-4.6 |
<-7.3 |
| Efficiency (%) |
37.2~66.3% |
39.1~67.9% |
| Polarization mode |
Linear |
Linear |
| Radiation pattern |
Omni-Directional |
Omni-Directional |
| Output impedance (Ω) |
50 |
50 |
| Max. Input Power(W) |
25 |
25 |
Mechanical and Environmental Specification:
| Mounting Type |
SMD |

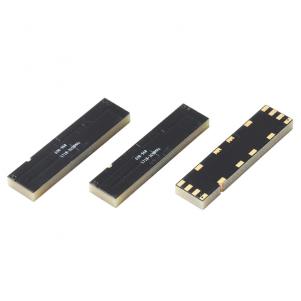

| Antenna size(mm) |
35.0 (L) x 8.5 (W) x 3.0 (H) |
| Material |
PCB |
| Operating Temperature (℃) |
-40℃~+85℃ |
| Storage Temperature(℃) |
-40℃~+85℃ |
|
