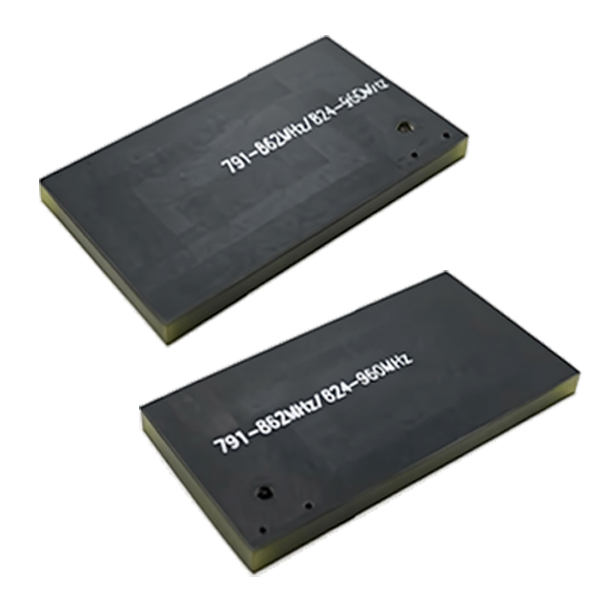

20*11*1.6 mm³ SMD Antenna KLS1-FRE-F-SMD20*11*1.6 |
 All Products in FRE antennas |
|
 |
Electrical Specifications:
| Standards |
NB2-B20 |
NB2-B5/B8 |
| Frequency range(MHz) |
791~862MHz |
824~960MHz |
| Peak Gain (dBi) |
0.5~2.7 |
0.5~2.0 |
| Average Gain (dB) |
-4.9~2.5 |
-4.3~2.7 |
| VSWR |
<2.9 |
<2.6 |
| Return Loss |
<-6.2 |
<-7.2 |
| Efficiency(%) |
32.2~56.4 |
37.0~54.2 |
| Polarization mode |
Linear |
Linear |
| Radiation pattern |
Omni-Directional |
Omni-Directional |
| Output impedance(Ω) |
50 |
50 |
| Max. Input Power(W) |
5 |
5 |
Mechanical and Environmental Specification:
| Mounting Type |
SMD |
| Antenna size(mm) |
20.0mm(L) x 11.0mm(W) x 1.6mm(H) |
| Material |
PCB |
| Operating Temperature(℃) |
-40℃ ~ +85℃ |
| Storage Temperature(℃) |
-40℃ ~ +85℃ |
|
