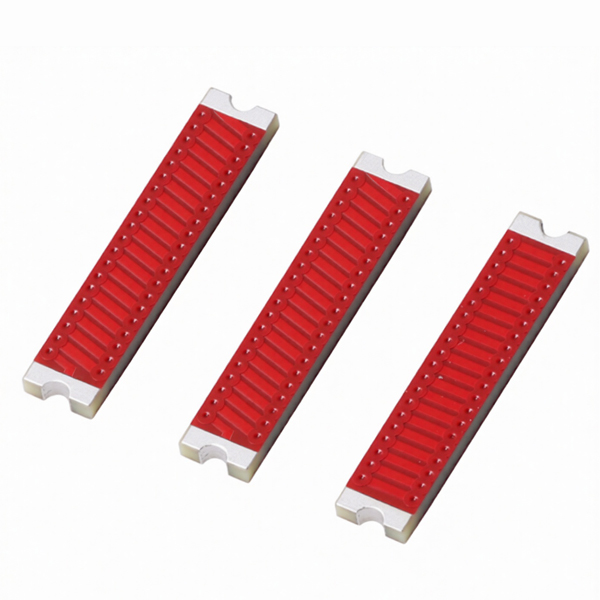

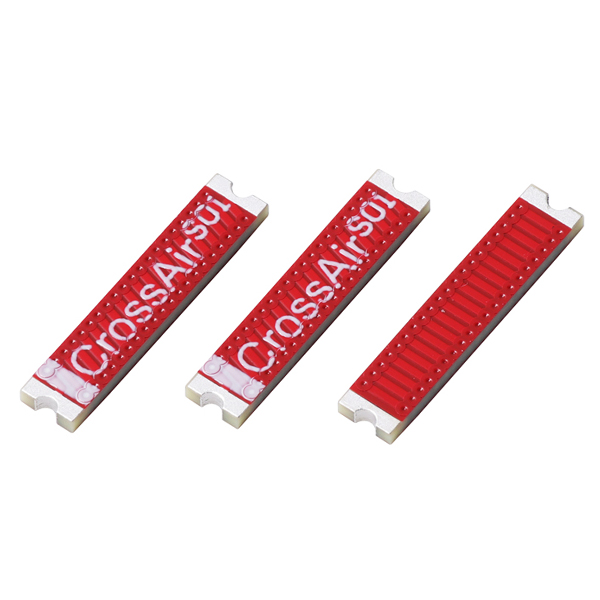

Features: 1. Surface Mounted Devices with a small dimension of 15.0 × 3.0 × 1.0 mm³ meet miniaturization trend.
2. Low power loss and high antenna efficiency.
3. High stability in Temperature and Humidity Change.
Electrical Characteristics:
Specification
Working Frequency Range
400Mhz-960Mhz
Fc(GHz)
950MHz
Band Width
>80MHz
Impedance
50Ω
Gain(dBi)
7
VSWR
<2
Operation Temperature(℃)
-40℃ ~ +85℃
Power Capacity
4W
The working frequency need beadjusted to working band with matching circuit.
