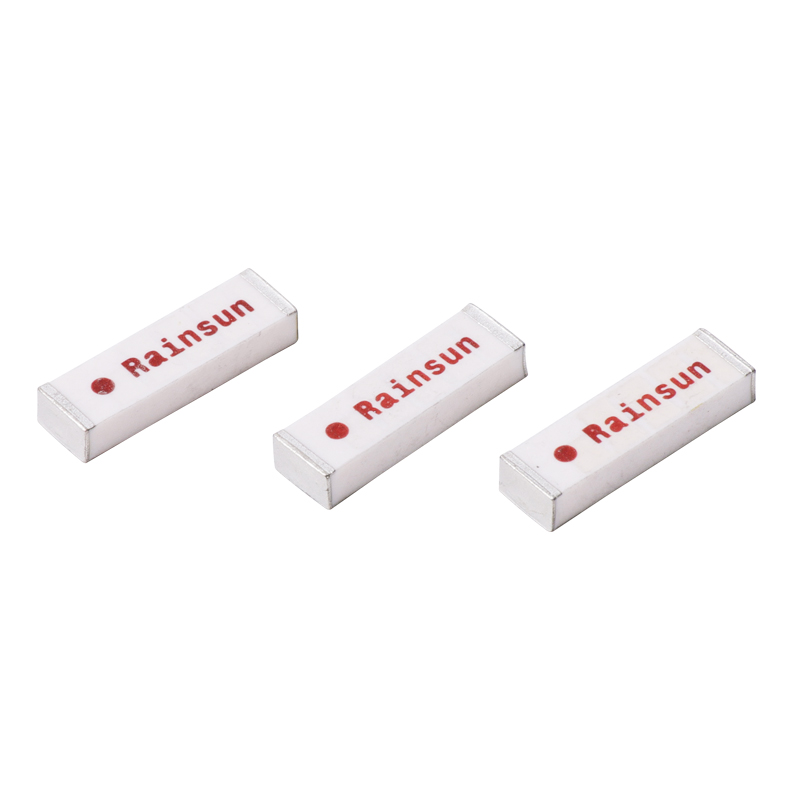

10.3*3.0*1.6 mm³ SMD Antenna KLS1-6G-T-SMD-10.3*03*1.6 |
 All Products in 6G antennas |
|
 |
Features:
1.Light weight and low profile 10.3mm(L)×3.0mm(W)×1.6mm(H)
2.Omni-directional in azimuth
3.Lead (Pb) Free
Specifications:
| Center frequency |
2.45GHz & 5~6GHz |
| Peak gain |
1dBi |
| Operation temperature |
-40℃ ~ +85℃ |
| Storage temperature |
-40℃ ~ +85℃ |
| VSWR |
2.0 (max) |
| Input Impedance |
50Ohm |
| Power handling |
3W (max) |
| Bandwidth |
2.45GHz 70MHz |
| 5~6GHz 500MHz |
| Azimuth beamwidth |
Omni-directional |
| Polarization |
Linear |
|
