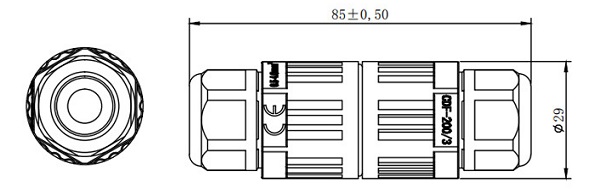

M20 waterproof circular connectors,IP68,Quick terminal
| Material |
| Insulation components |
PA66 |
| Flame retardant grade |
UL94V-0 |
| Contact/Terminal material |
Copper alloy |
| Waterproof circle |
Silica gel |
| Number of poles |
2,3 pins |
| Wire specification |
0.5～2.5m㎡ |
| Line diameter range |
4.5~7.5㎜ |
| Operation voltage |
450V |
| Rated current |
32A |
| Temperature range |
-40℃~+105℃ |
| waterproof code |
IP68 |
|
