You are here: Home > Products > Switches > Pushbutton switches
Push Button Switch KLS7-PBS-007 All Products in Pushbutton switches

Push Button Switch


  Product Images
Push Button Switch Push Button Switch Push Button Switch


  Product Information

Push Button Switch
ELECTRICAL
Rating: 3A 125V AC ,1A 250V AC
Contact resistance: 20mΩ Max
Insulation resistance: 100MΩ/500VDC Min
Withstanding Voltage: AC1000V/1Min
Operating Temperature: -25ºC~+85ºC
Electrical life: 50000 Cycles

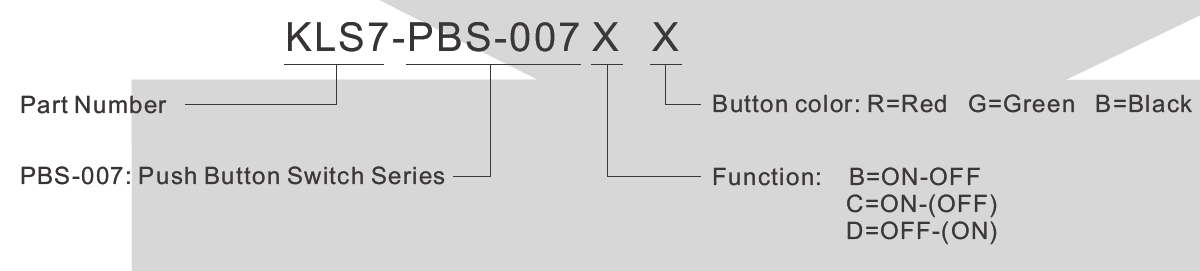

Picture Part No. PDF Description Order Qty. Time Order
KLS7-PBS-007B-BPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-OFF,Black Square Cap.
KLS7-PBS-007B-GPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-OFF,Green Square Cap.
KLS7-PBS-007B-RPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-OFF,Red Square Cap.
KLS7-PBS-007B-YPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-OFF,Yellow Square Cap.
KLS7-PBS-007C-BPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Black Square Cap.
KLS7-PBS-007C-GPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Green Square Cap.
KLS7-PBS-007C-RPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Red Square Cap.
KLS7-PBS-007C-YPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,ON-(OFF),Yellow Square Cap.
KLS7-PBS-007D-BPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Black Square Cap.
KLS7-PBS-007D-GPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Green Square Cap.
KLS7-PBS-007D-RPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Red Square Cap.
KLS7-PBS-007D-YPushbutton Switch,3A 125V AC/1A 250V AC,Panel Mount,Solder Lug terminal,OFF-(ON),Yellow Square Cap.
